72" Model #33004
79" Model #33215
82" Model #33216

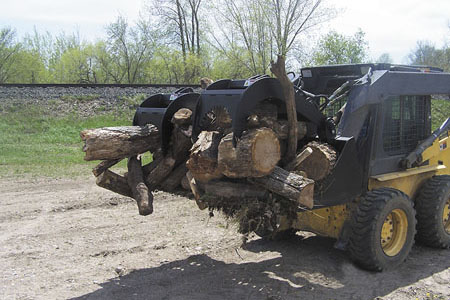

Designed to leave the dirt behind when picking up unwanted material
Independant grapples with greaseable pivot points
Width
Overall Height - Closed
Overall Height - Open
Overall Depth
Grapple Opening
Depth of Bucket
Tines
Cutting Edge
Top Tube
Bottom Tube
Grapple Arms
Cylinders
Hydraulic Couplers
Hydraulic Hoses
PSI Max
Pivot Points
Main Pin
Rear Cylinder Pin
Front Cylinder Pin
Weight
72", 79", 82"
27"
44"
46"
38"
37"
3/8" - Grade 50
1/2" x 10" = Grade 50
3" x 4" x 1/4"
3" x 4" x 1/4"
1/2" Grade 50 - Laser Cut
2½" x 8" - Welded
Flat Face
3/8"
3,000 PSI
Grease Zerks
1.75" x 20"
1" x 6"
1" x 5.5"
72" = 1100lbs, 79" = 1264lbs,
82" = 1312lbs
