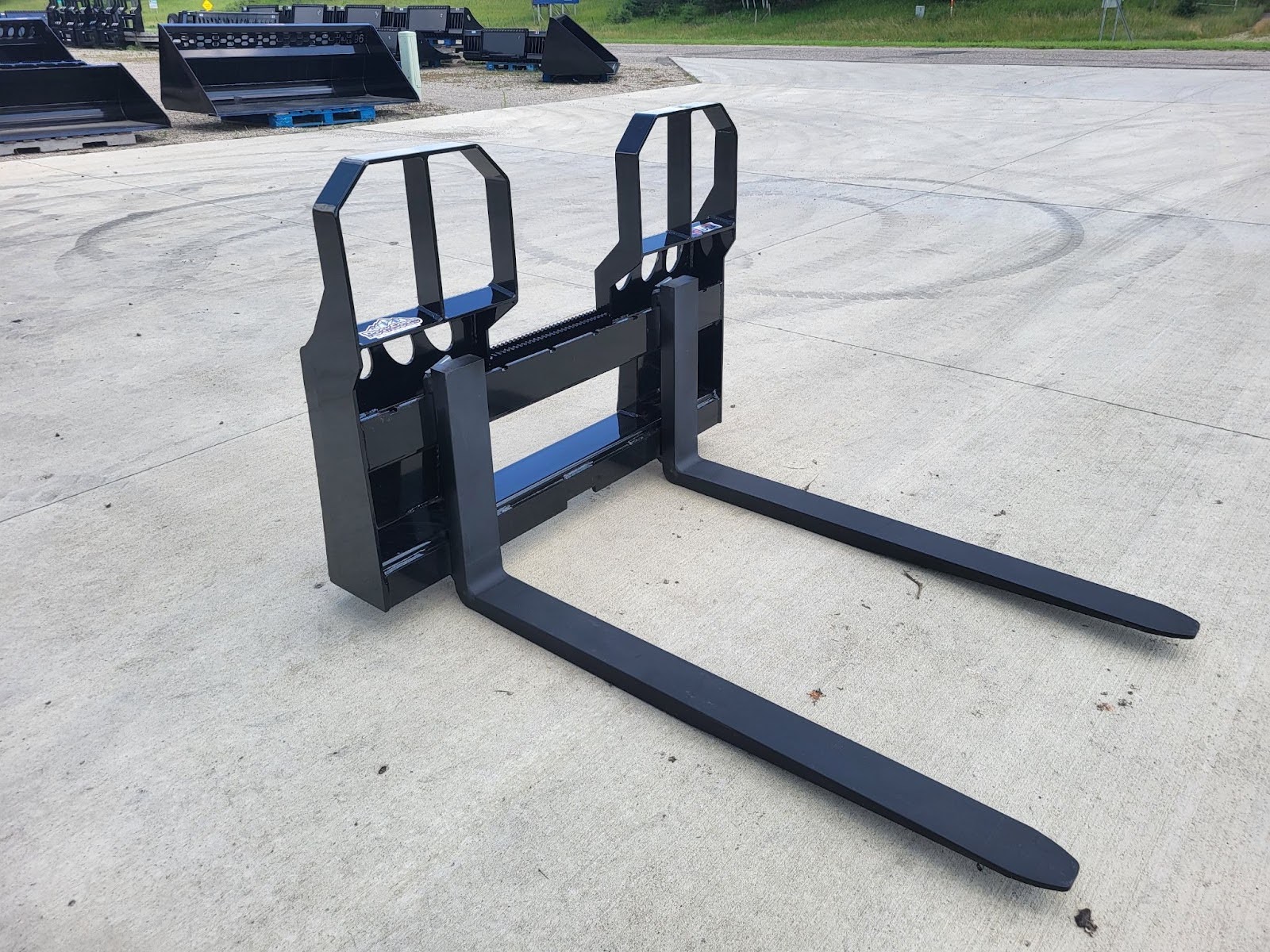

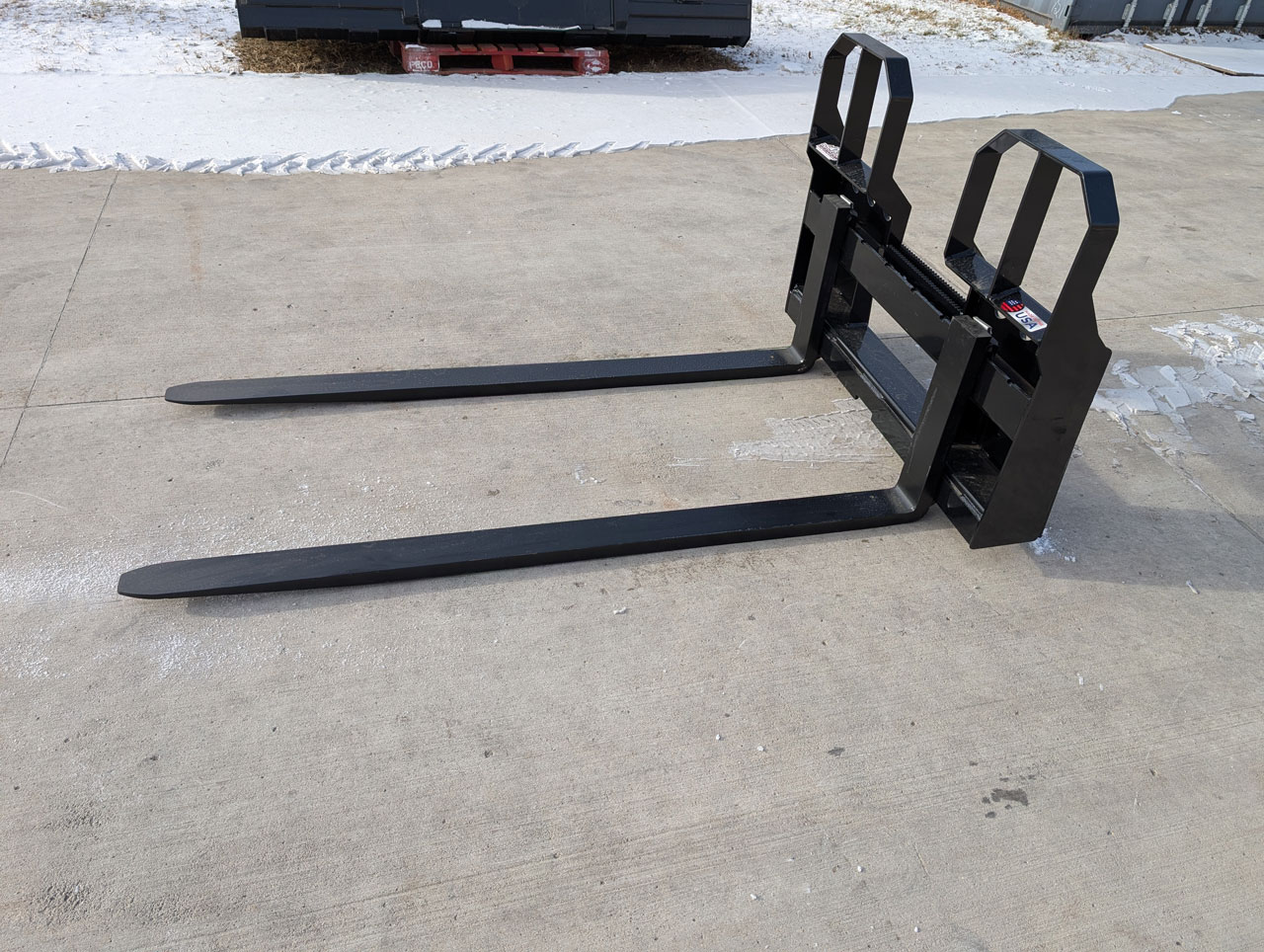

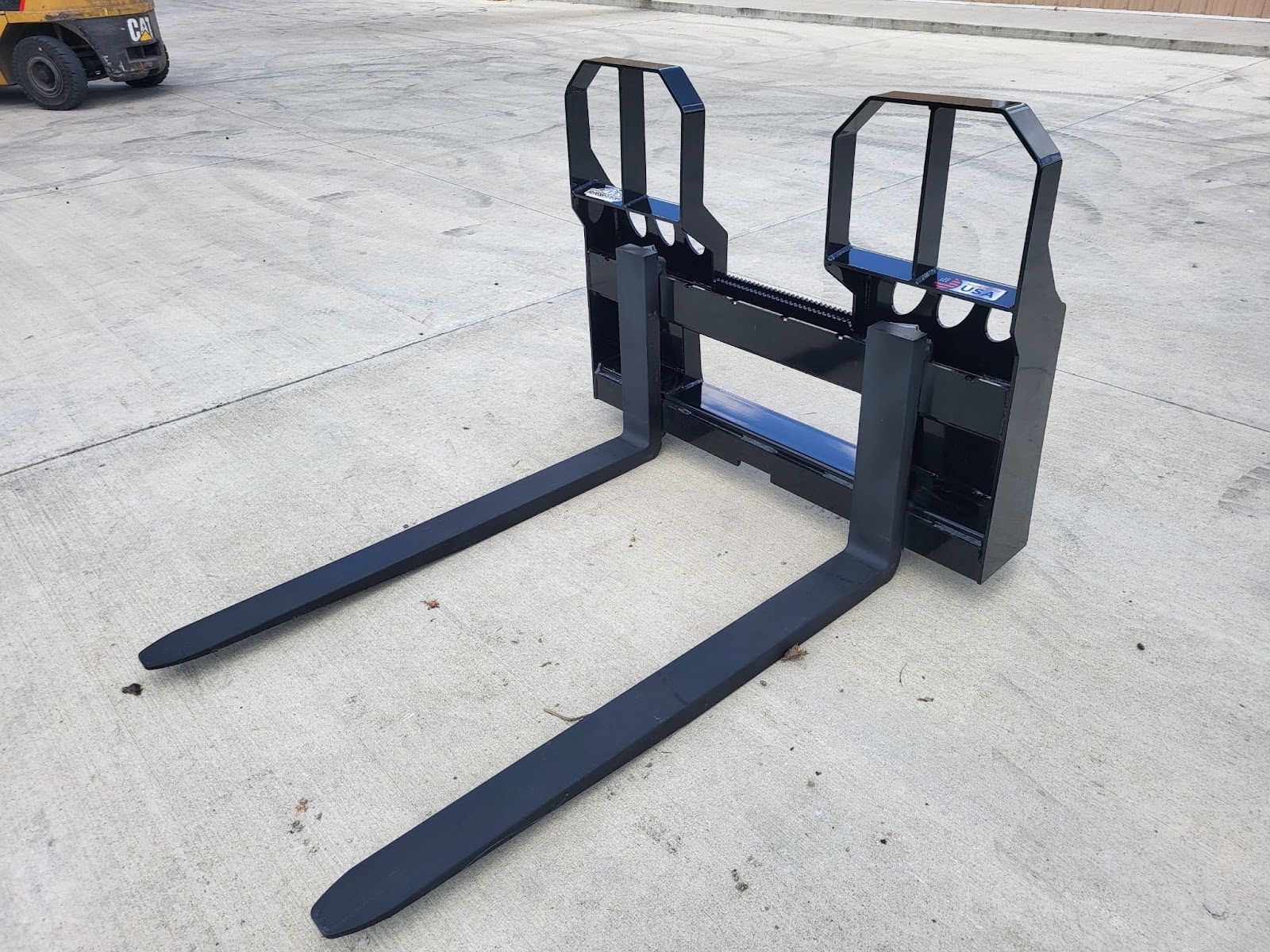

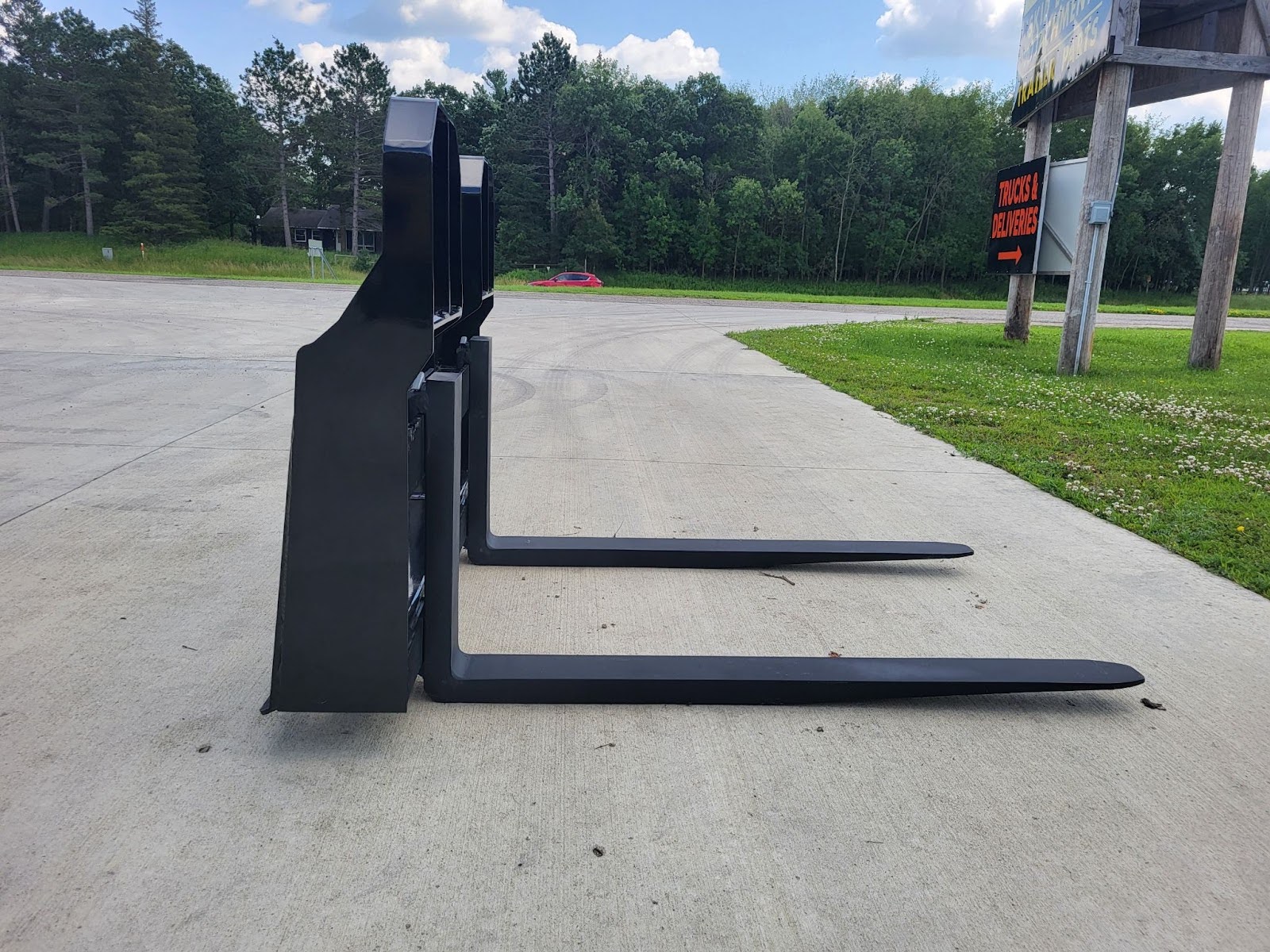

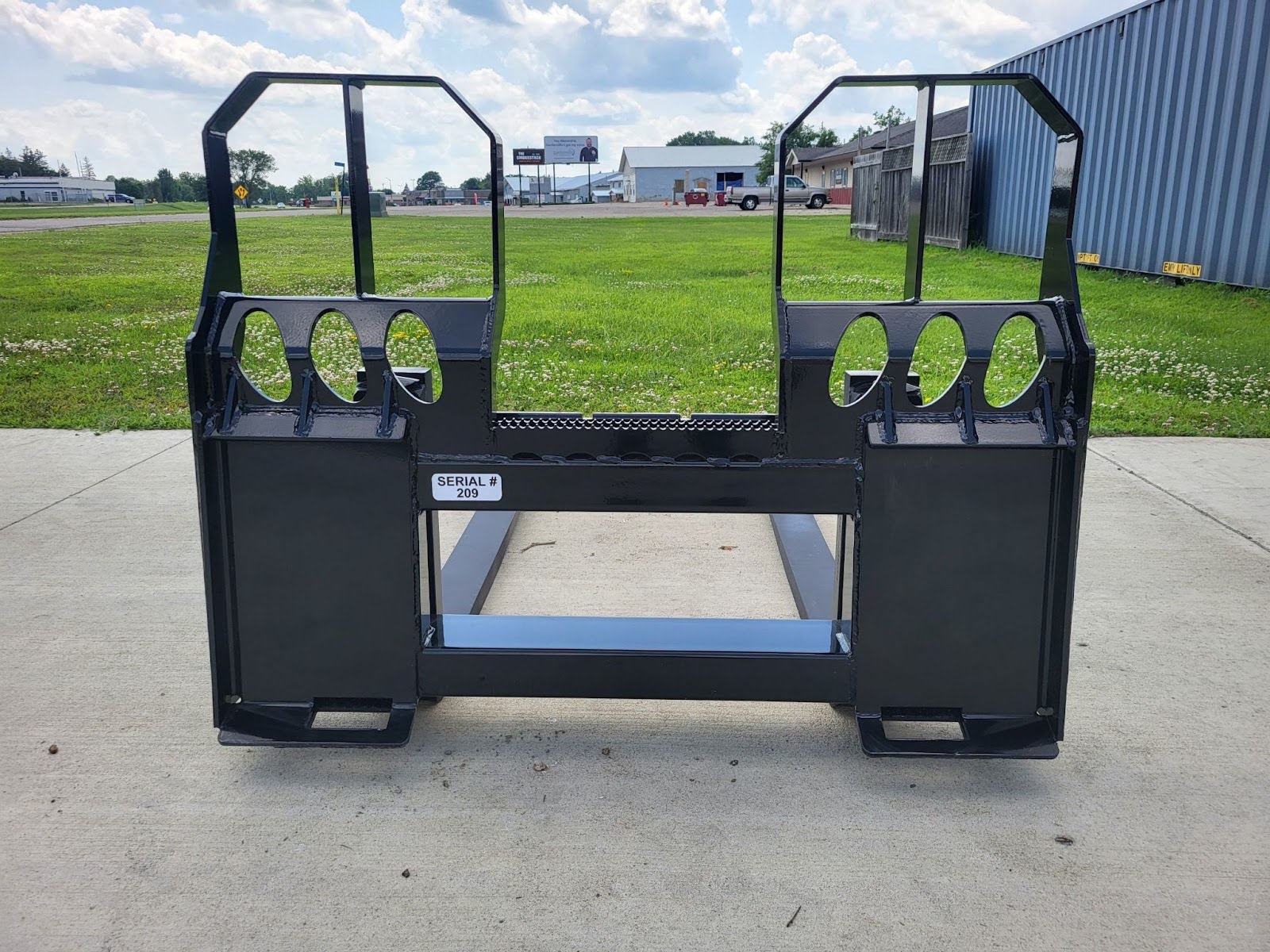

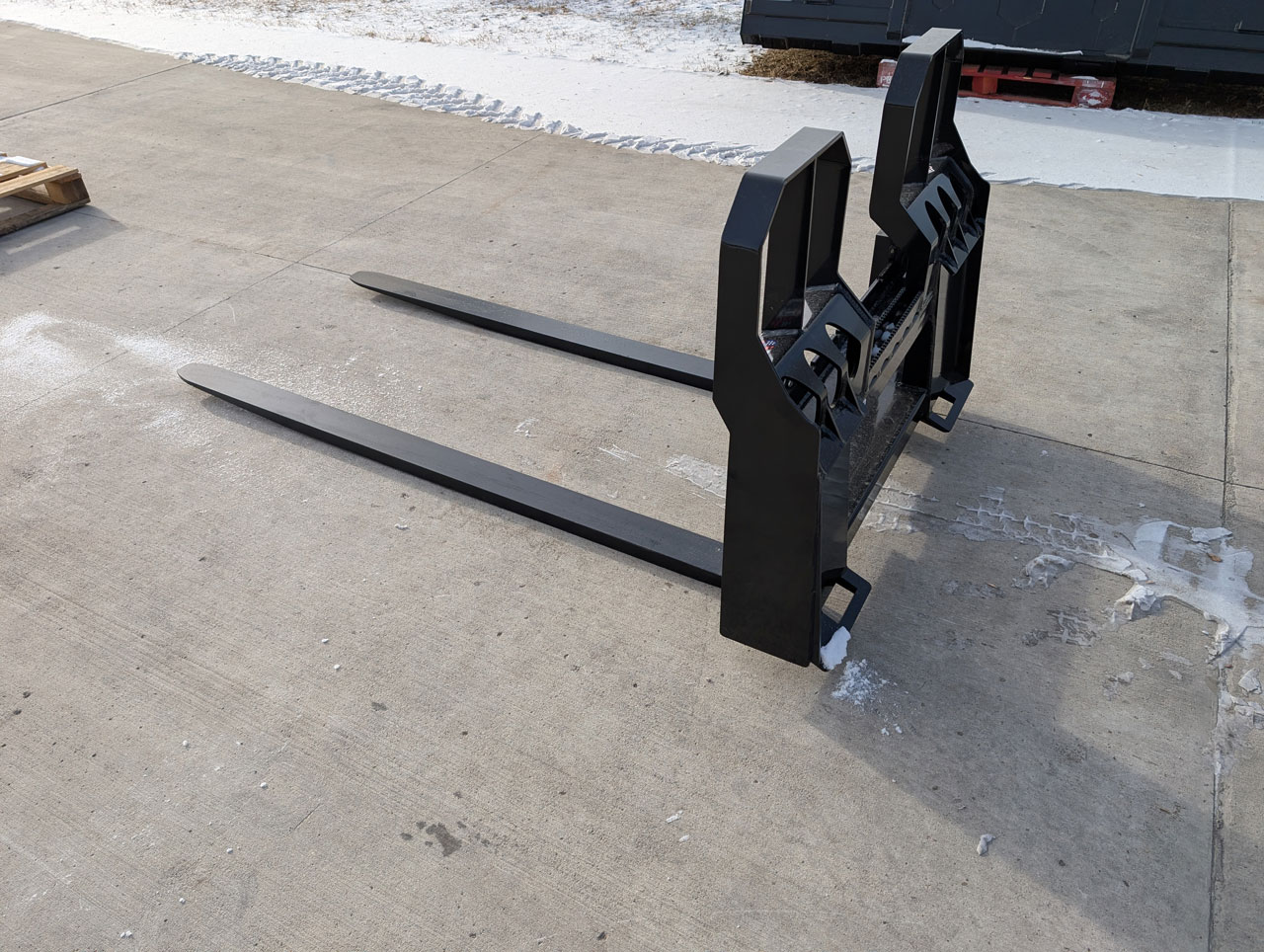

Model #90001W
Durable construction for years of use

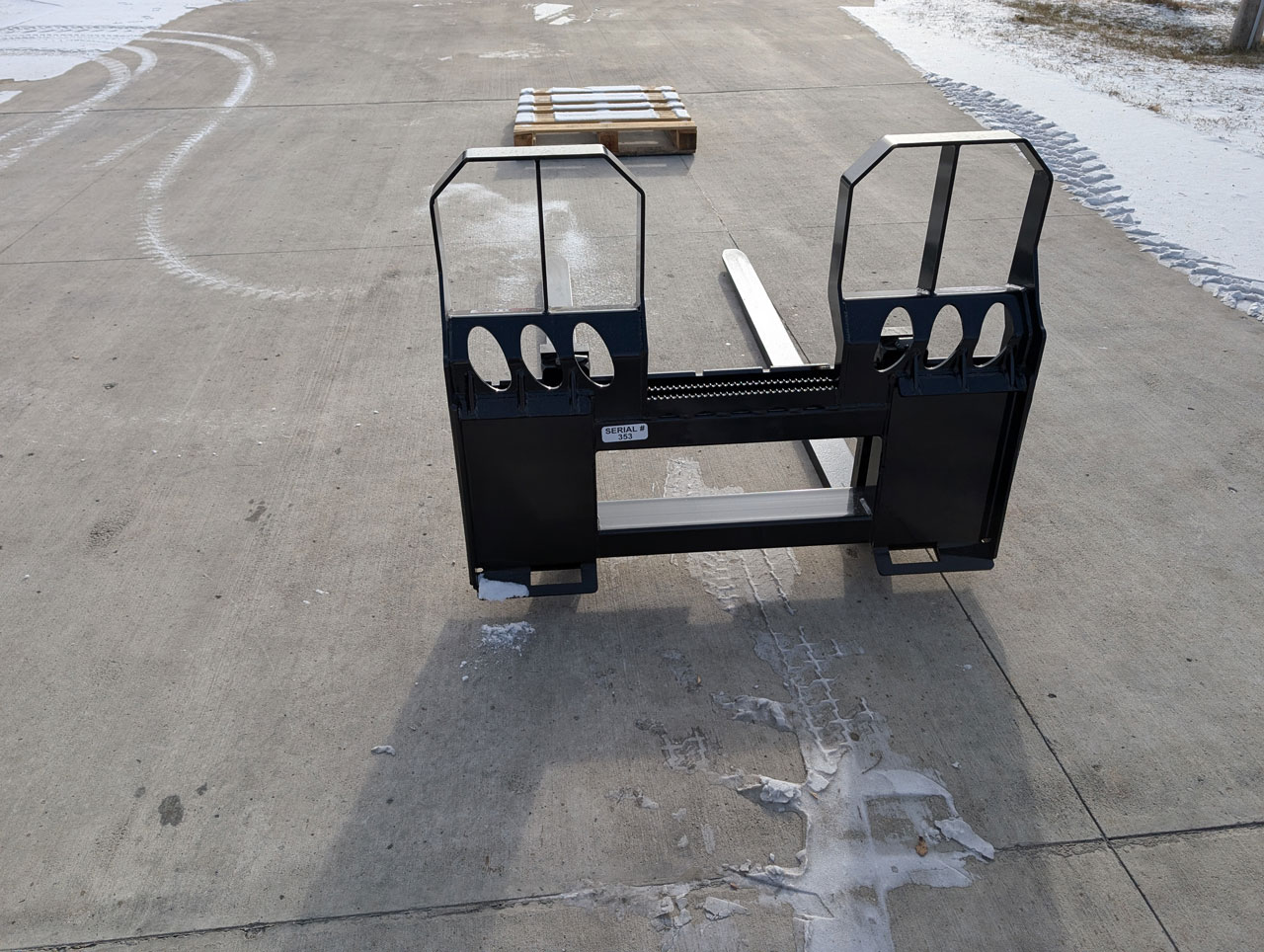

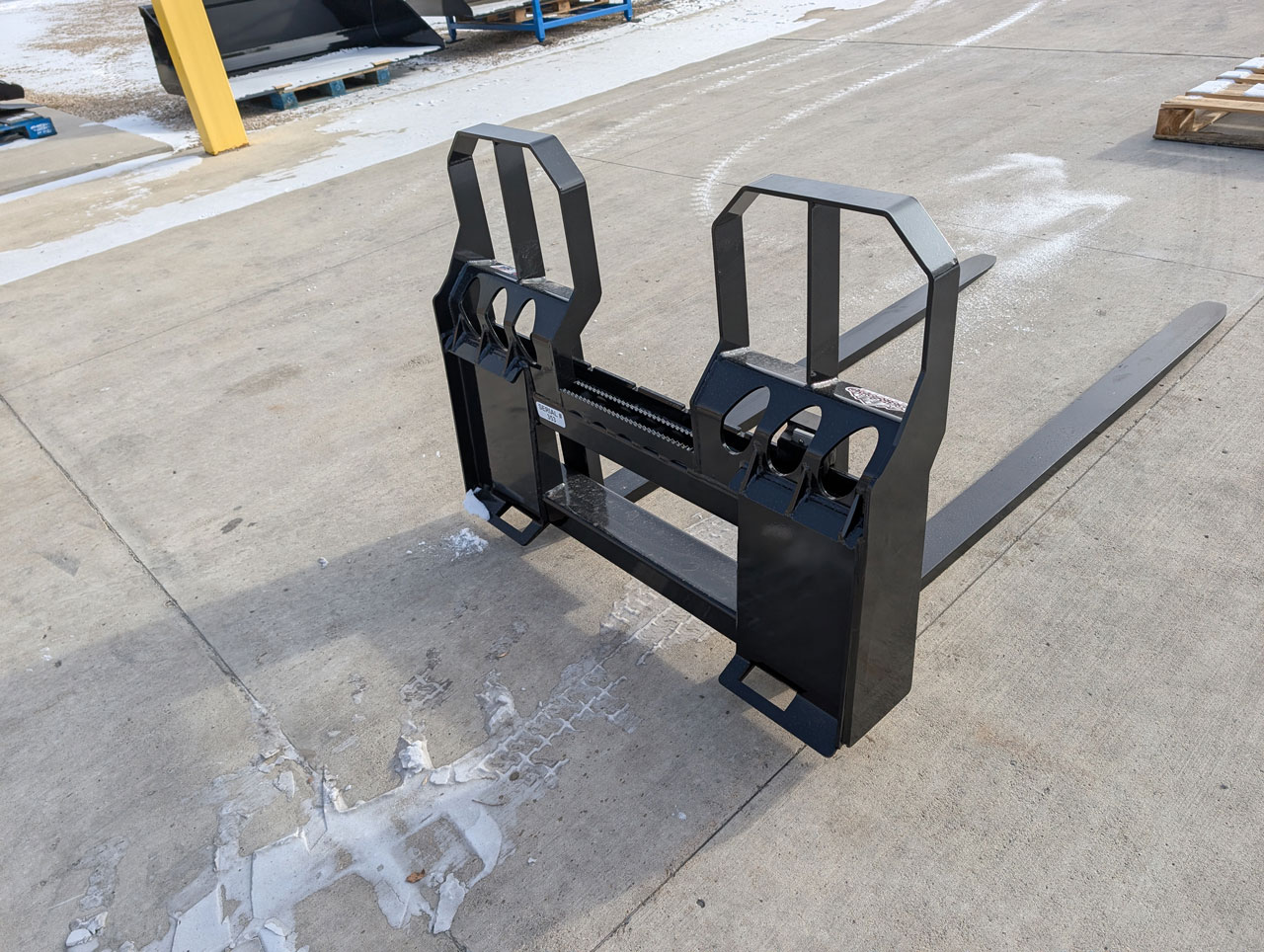

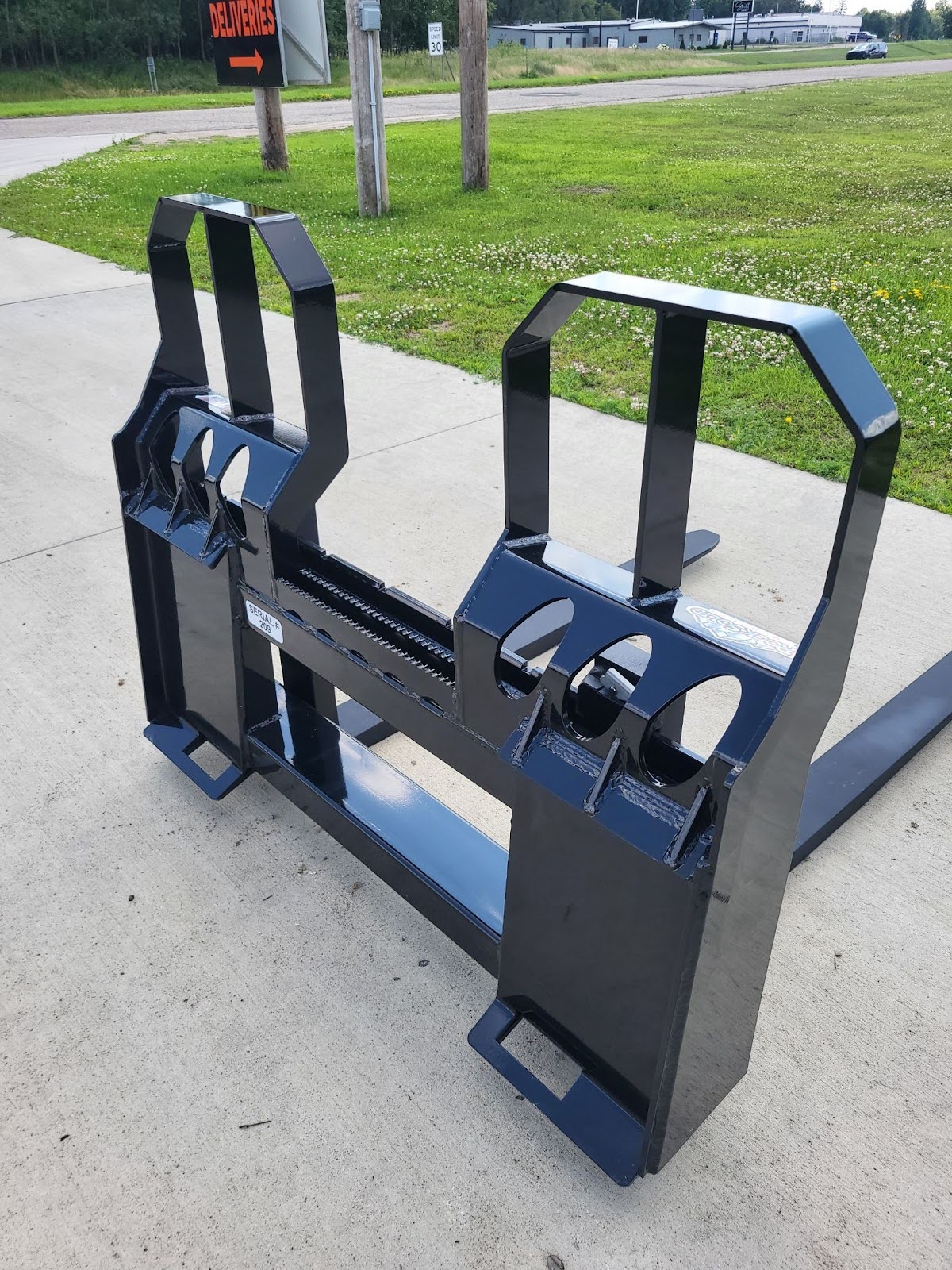

Open and removable brick guard allows for clear vision of load
Ideal for moving materials around the job site
Painted using a 2 part Urethane process for an exceptional finish
Designed for use with palletized material only. Keep fork tines as wide as pallet allows.
Lift limit is determined by fork capacity or loader capacity, whichever is less.
Capacity is based on no more than 1/2 load per fork and load no more than 1/2 way out on each form.
Overall Width
Overall Height
Depth
Top and Bottom Rails
Fork Length
Fork Width
Fork Thickness
Tines
Estimated load capacity at 24" load center (per pair)
Weight
45"
42"
9½"
3/8" Grade 50
48"
4"
1-3/8"
Call II Part #80489
4,400 lbs
345 lbs
