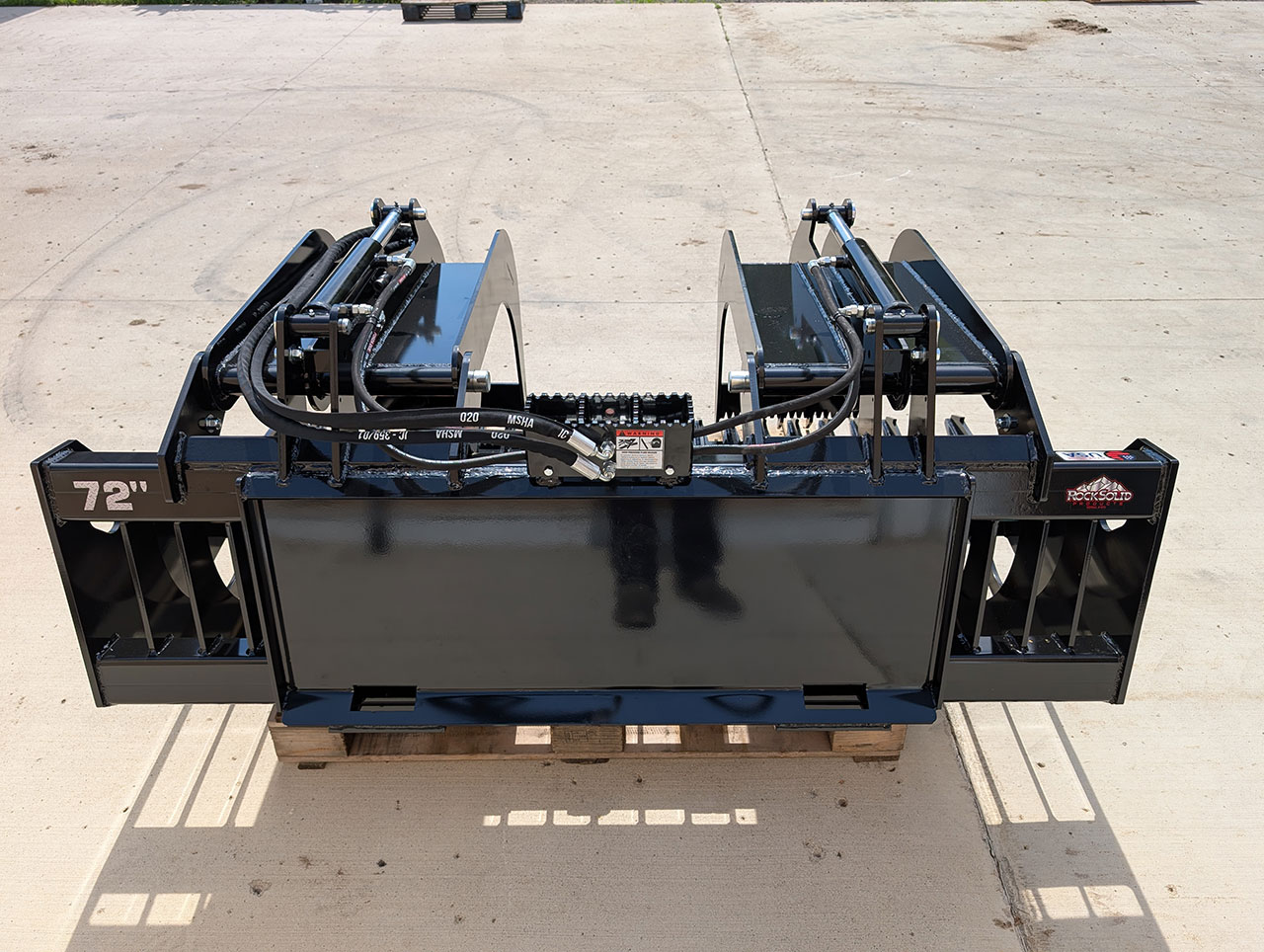

72" Model #33011
79" Model #33167
82" Model #33224
Built heavy duty to handle the toughest jobs
Dig, grab, pull, clear and sift with one tool
Excellent for all your landscaping or demolition duties
Serrated tooth design grabs & holds the toughest materials
Width
Overall Height - Closed
Overall Height - Open
Overall Depth
Grapple Opening
Depth of Bucket
Tines
Cutting Edge
Top Tube
Bottom Tube
Grapple Arms
Cylinders
Hydraulic Couplers
Hydraulic Hoses
PSI Max
Pivot Points
Main Pin
Rear Cylinder Pin
Front Cylinder Pin
Weight
72", 79", 82"
27"
41"
40.5"
35.5"
33"
3/8" - Grade 50
1/2" x 8" - Grade 50
1/2" x 4" x 1/4"
2" x 4" x 1/4"
1/2" Grade 50 - Laser Cut
2" x 8" - Welded
Flat Face
3/8"
3,00 PSI
Grease Zerks
1.75" x 20"
1" x 6"
1" x 5.5"
72"=900lbs, 79"=987lbs, 82"=1025lbs
