60" Model #33037, 68" Model #33053
72" Model #33013, 78" Model #33042
80" Model #33023, 84" Model #33024
Low profile for better visibility of the cutting edge
Reinforced bucket liner for longer life and less buckling

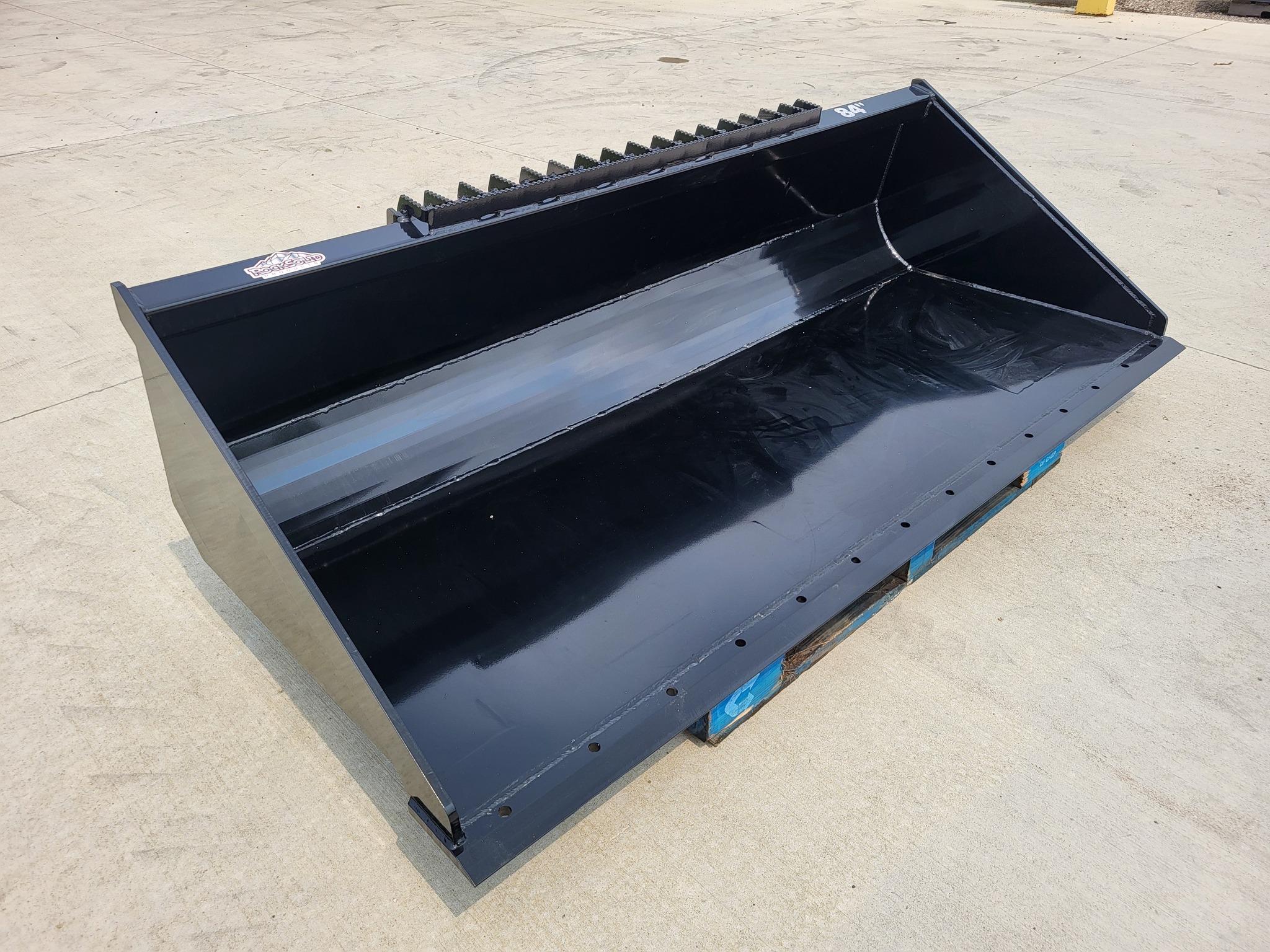

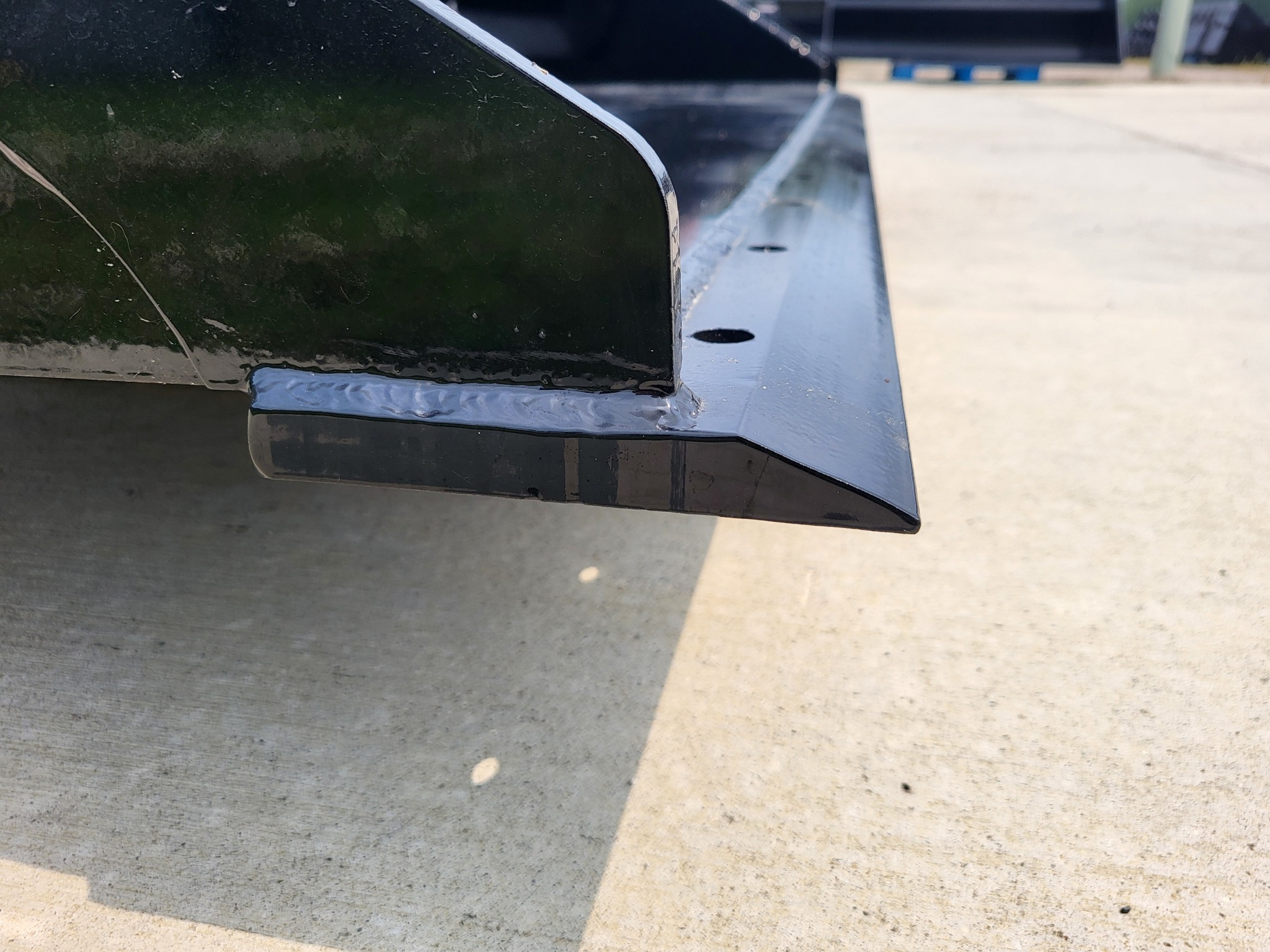

Holes in cutting edge for optional 5/8" x 8 bolt on cutting edge (6" bolt spacing)
Overall Width
Overall Height
Overall Depth
Bucket Thickness
Side Plates
Step Bent Insert
Side Cutting Edge
Wear Bars

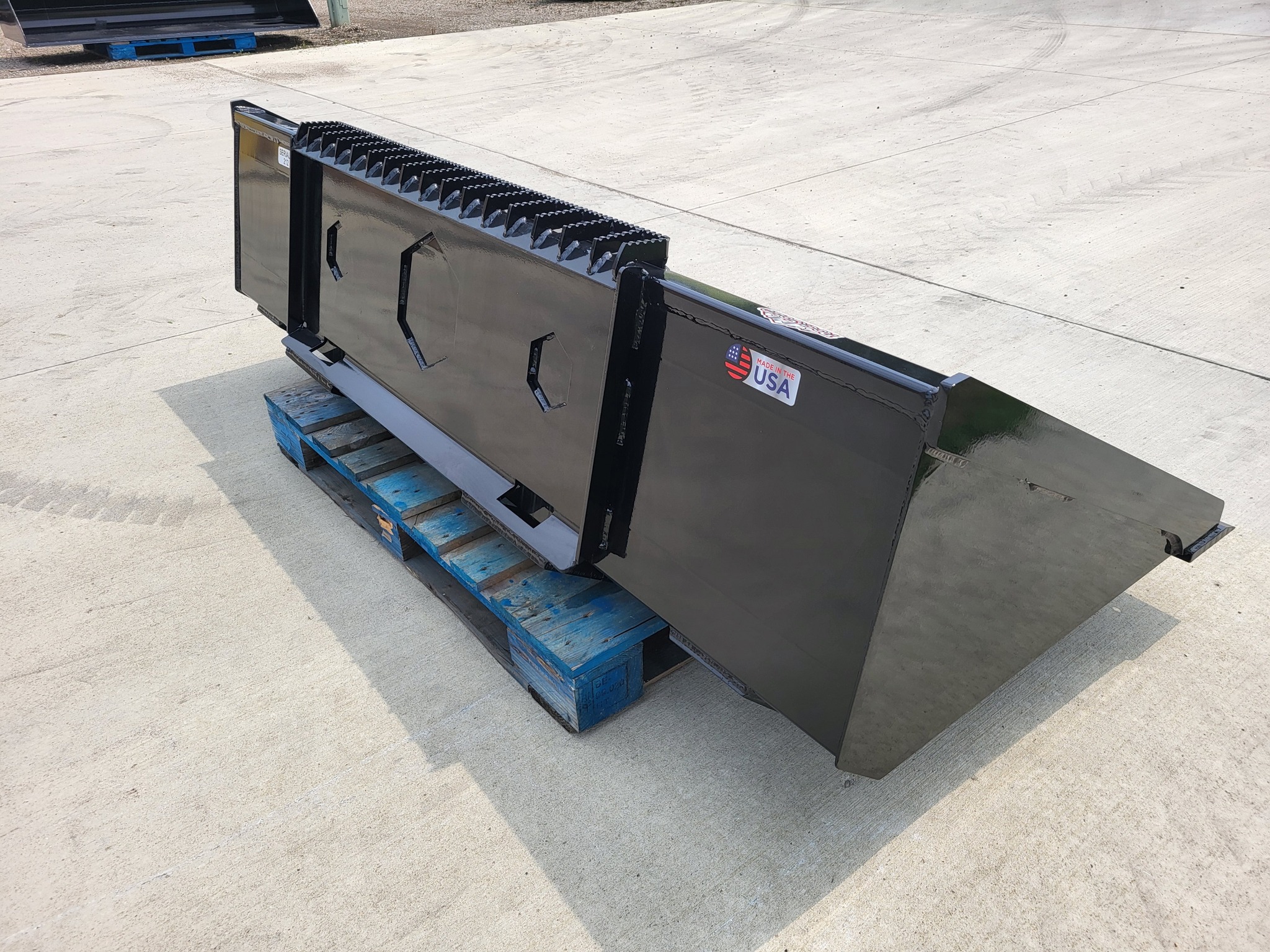

Mounting Plate
Cutting Edge
Step
Struck Capacity cu. ft.
Heaped Capacity cu. ft.
Weight
60", 68", 72", 78", 80", 84"
21½"
38¾"
3/16"
3/16"
3/16"
3/8" Grade 50
3/8" grade 50
5/16" HR Steel
3/4" x 6"

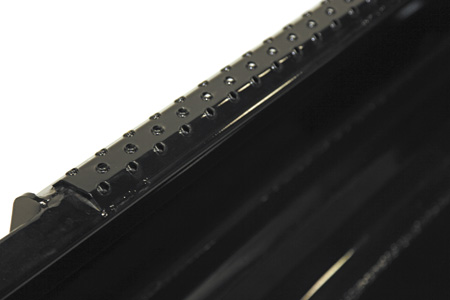

Extruded Grips
(60" 13.2) (68" 15) (72" 15.9)
(78" 17.5) (80" 17.75) (84" 18.5)
(60" 15.8) (68" 18) (72" 19)
(78" 20.5) (80" 20.12) (84" 22.25)
(60" 485) (68" 525) (72" 530)
(78" 575) (80" 610) (84" 630)
